In this article:

Learn how gas bottles work, how liquid LPG turns into gas, how pressure changes with temperature and how gas valves work to relieve pressure.

Gas in Bottles – How Do Gas Bottles Work

Firstly, LPG gas is gas in bottles. A gas bottle-cylinder works when the LPG gas in bottle, stored as a liquid under pressure, turns back into gas by releasing some of the pressure in the gas bottle through use. The LPG gas bottle-cylinder works after being filled with the pressurised LPG.

The LPG gas in bottle is generally stored, as a liquid, in steel vessels ranging from small BBQ gas bottles to larger bottles of propane gas and LPG storage tanks.

The LPG turns back into gas as it exits the LPG gas bottle (propane gas bottle) but then passes through a gas regulator.

The regulator reduces the LPG pressure to the level used by the appliances, as the pressure of propane is too high for most applications, at up to 2482 kPa.

Importantly, gas regulators are connected to propane gas bottle outlet valves because they reduce the LPG gas pressure to the much lower 2.75 kPa working pressure.

Gas in Bottle (Gas in a Cylinder) – LPG Tanks

Liquid propane is at the bottom of the bottle. Propane gas is at the top.Gas in bottle (gas in a cylinder) or LPG tanks is LPG-propane as a liquid under pressure, from 0 kPa at -42°C to 1794 kPa at 54°C.

LPG turns back from liquid into gas when you release some of the pressure.

The LPG exists as both liquid and gas in bottle. (See image)

LPG Gas Bottle-Cylinder Works with Liquid & Gas in Bottle

LPG-propane liquid boils and turns back into gas in bottle when you release some of the pressure in the propane gas bottle by using gas.

LPG gas cylinder works (propane tank works) with some of the LPG-propane at the top of the cylinder-tank in gaseous form whilst it is liquid at the bottom. (See image above)

All LPG gases, including propane, are compressed into liquid at relatively low pressures and are also referred to as natural gas liquids – NGL.

Importantly, almost all of the uses for bottles of propane gas involve the use of the gas vapour, as opposed to the liquefied gas.

LPG Gas Bottle-Cylinder – Propane Tank – Cooking Gas Cylinder

LPG gas bottles-cylinders (bottles of propane gas) may also be called “Propane Gas Bottles”, “LPG Bottles”, “LPG Gas Bottles” or just “Gas Bottle”.

LPG gas bottles-cylinders (bottles of propane gas) work by containing both liquid and gas because LPG liquefies under relatively low pressure.

An LPG gas cylinder (propane tank) is considered low pressure versus high pressure cylinders, as used with CNG.

Gas bottle sizes vary because of application and demand.

A small propane gas bottle is portable, as used in camping.

What is an LPG Bottle-Cylinder Made of

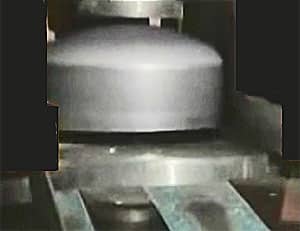

An LPG bottle-cylinder is typically made of welded steel, aluminium or composites.

To start, steel is by far the most common material because it is the easiest to fabricate and it is a low cost material.

Some cylinders are made of aluminium or composites since they save on weight.

Aluminium is quite common for forklift cylinders because of weight relating to safe lifting.

The use of aluminium keeps the weight down to allow for more gas in bottles since staying within the safe lifting weight limits is important.

The most recent innovation is the composite cylinder.

These are typically fiberglass with a high impact plastic outer shell.

Some have an inner lining of HDPE whilst other have a thin steel liner because they are gas impermeable.

How LPG (Propane) Liquid Changes to Gas – Vaporisation

Did you know that every time you turn on one of your gas appliances, the LPG gas cylinder works (propane gas bottle works) as the liquid LPG starts to boil turning into gas in bottles?

Surprisingly, if you could see though the steel, you would also notice that it looks just like water boiling.

The big difference is that it happens at -42°C or -44°F.

Vaporisation is LPG boiling from liquid into its gaseous state as gas in a cylinder.

Vaporisation is how LPG goes from liquid to gas.

LPG (Propane) Boiling Point

Water boils at 100°C or 212°F, becoming a gas (steam).

In contrast, LPG boils at -42°C or -44°F, becoming gas vapour.

LPG stays liquid because it is under pressure in an LPG cylinder (propane gas bottle).

As a liquid, it looks a lot like water.

It becomes gas after it boils.

It is colourless and odourless in its natural state.

LPG (Propane) Vaporisation – How LPG Turns Into Gas In Bottle

Vaporisation is LPG boiling from liquid into gas in bottlesLPG liquid boils and turns back into gas in bottle (gas in a cylinder) when you release some of the pressure in the gas bottle (propane tank) by turning on your gas appliance.

Firstly, to boil, the liquid LPG draws heat from the steel walls of LPG gas cylinders (bottles of propane gas) which, in turn, works by getting heat from the ambient air. (See image)

As with water, the more heat that is applied, the more rapidly it boils, vaporising at a faster rate.

The vapour pressure in the gas bottle (propane tank) also increases with temperature, as explained below.

Because the steel of the bottle draws heat from the ambient air heat, cold weather will slow down the rate of vaporisation.

As a result, vaporisation also makes the gas bottle (propane tank) feel colder than the ambient temperature.

Actually using the gas makes the gas bottle gets even colder.

Under the right conditions, frost or ice can even form on the gas bottle (propane tank) because you are using gas very rapidly,

From a practical point of view, it is used just like natural gas, although the LPG energy content is much higher.

As it is portable gas in bottles, it can be used in vehicles as well as home heating, hot water and cooking.

LPG Pressure

LPG pressure regulator and changeover valve.LPG pressure refers to the average force per unit of area that the LPG gas in bottle exerts on the inside walls of LPG gas bottles (bottles of propane gas).

Actual LPG pressure varies with temperature.

As a result, LPG pressure goes from 0 kPa (0 PSIG or 0 bar) at -43ºC to 2482 kPa (360 PSIG or 24.8 bar) at 70ºC.

It goes even higher with greater temperatures.

The LPG pressure is reduced to at 2.75 kPa, the level used in appliances, by a gas regulator. (see image)

LPG is a liquefied gas.

So, the pressure inside the cylinder will remain the same from full until the vaporistion of the last of the liquid LPG.

Then the pressure will fall, with the use of the last of the LPG vapour.

LPG pressure measurement is in kilopascals (kPa), pounds per square inch (psi) or “Bar”.

LPG (Propane) Pressure Varies with Temperature

As previously mentioned, LPG stored as gas in bottles (bottles of propane gas) is under pressure.

Pressure increases with temperature.

(LPG Pressure-Temperature Chart shown)

LPG (propane) gas cylinder-bottle pressure chart
Temp Temp Pressure Pressure Pressure
ºC ºF kPa PSIG Bar
70 158 2482 360 24.8
60 140 2013 292 20.1
54 130 1794 257 17.9
43 110 1358 197 13.6
38 100 1186 172 11.9
32 90 1027 149 10.3
27 80 883 128 8.8
16 60 637 92 6.4
-1 30 356 51 3.6
-18 0 152 24 1.5
-29 -20 74 11 0.7
-43 -45 0 0 0
Note: Some numbers have been rounded.
Gas pressure is measured in kilopascals (kPa) or pounds per square inch (psi).

“Bar” is yet another unit of measure for pressure.

1 Bar = 100 kPa, so it is metric based but not an SI unit of measure.

LPG pressure can vary greatly based on temperature, as shown in the chart.

The level of fill in the bottles of propane gas comes into play when the LPG is being used, as it affects the rate of vaporisation.

How Much Pressure is in an LPG (Propane) Cylinder?

LPG is under pressure, as a liquid, and turns back into gas when you release some pressure.

An LPG gas cylinder-bottle works (propane tank works) with pressure of LPG (propane) gas going from 152 kPa (24 PSIG) at 0°C to 1794 kPa (257 PSIG) at 54°C.

The pressure drops to zero at -43ºC (which is just below the boiling point) and the pressure becomes greater at even higher temperatures.

Vaporisation Must Match Consumption When LPG Gas Cylinder Works (Propane Tank Works)

The amount of gas that the appliance or appliances draw from the gas bottles (propane tanks) must be matched by the rate of vaporisation when the LPG gas cylinder-bottle works (propane tank works).

Switching to a larger vessel can provide a higher rate of vaporisation.

Heat is absorbed through the vessel walls and into the liquid.

The larger the tank or the fuller the tank, the more gas that can be vaporised at a given temperature.

Vaporisation tables are used to match the required vaporisation rates to the corresponding vessel size.

The vaporisation tables show the maximum continuous vaporisation rates, in MJ/hr, at different ambient temperatures for each available vessel size.

LPG Gas Bottle Works with a Valve

All bottles of propane gas work with some form of gas valve.

A “POL” valve is the most common type of LPG valve in Australia, for most LPG cylinders from 45kg to 210kg.

The POL valve connection is notable for its reverse — left-handed — thread.

A pressure relief valve is incorporated within the POL valve, for safety.

Newer LCC27 valves, with added safety features, have been introduced for BBQ size gas bottles.

Gas Line Connection

The gas line pigtail or POL regulator screws into the large female threaded opening on the side of the valve.

It is unique in that it has a left-handed or reverse thread. So, to tighten it, you turn the connector anti-clockwise.

Tightening is achieved either with a wrench or by turning a hand wheel.

You should always do a soapy water leak test after every reconnection.

LPG Gas Bottle-Cylinder Works by Turning the Gas Valve Hand Wheel

The LPG gas bottle-cylinder works by turning the hand wheel anti-clockwise to start the flow of gas in bottle, but you should avoid turning it hard to the open stop.

Located on the top of the valve, the gas valve hand wheel controls the flow of gas, once the connection is secure.

Opening the valve 2 or 3 turns is all you need.

You shut the gas off by turning the hand wheel clockwise, tightening firmly by hand only.

CAUTION: Never open the valve when unattached

Pressure Relief Valve

The pressure relief valve is the single most critical safety feature in how an LPG cylinder-bottle works (propane tank works).

It is incorporated within the POL or LCC27 valve and appears as the protrusion opposite the main connection.

The pressure relief valve usually incorporates some kind of plastic dust cover that should be left in place.

Pressure relief valves are designed to relieve excess gas pressure that might result from overfilling or exposure to excessive heat or fire.

The function of a pressure relief valve is to keep a cylinder from rupturing, in the unlikely event of excessive pressure build-up.

The pressure relief valves are held in the closed position by the force of a powerful spring inside.

As long as the pressure is less than that of the spring, the valve will remain closed.

LPG Gas Bottles (Bottles of Propane Gas) Venting Gas

If the pressure rises beyond safe levels, the LPG gas bottle pressure relief valve opens to vent the excess pressure.

If this happens, you may hear a hissing sound and see cold gas vapour being released.

Once sufficient pressure is released, the valve closes.

If this ever happens, just stay clear of the area and let the gas dissipate.

Having the pressure relief valve releasing gas is a rare event. Most people will never experience venting.

You should also call your LPG supplier, from a safe location, and advise them that your gas cylinder is venting gas.

Do not use your mobile phone, any electrical devices or other ignition sources near a venting gas cylinder.

Final Thoughts

In conclusion, an LPG gas bottle functions unnoticed after evolving over many decades into a very safe storage and gas delivery system.

They are also easy to operate and requiring little attention until they need refilling.

Eric Hahn
