MIG Gas & TIG Gas: MIG Welding Gas Bottles – TIG Welding Gas Bottles – MIG Gas Shielding Gas for MIG Welding Gas

MIG gas (Metal Inert Gas) welding, also known as GMAW (Gas Metal Arc Welding), is a semi-automatic welding process that uses a continuous wire feed as an electrode and MIG welding gas – MIG gas (shielding gas for MIG welding) to protect the weld area.

MIG welding gas – MIG gas is popular due to its ease of learning and versatility.

Argon is the most frequently used inert gas as MIG welding gas – MIG gas for MIG welding (MIG welder gas) or TIG welding gas (TIG gas).

Argon is the primary TIG welding gas – TIG gas as a shielding gas for most metals.

Argon is also used for MIG welding gas – MIG gas for MIG welding with aluminum and MIG brazing.

In general the term MIG gas (European term for Metal Inert Gas) welding is used loosely in our industry and covers everything Gas Metal Arc Welding (US term is GMAW) related.

The term MIG welding gas correctly refers only to the use of MIG welding gas – MIG gas for MIG welding (MIG welder gas) which are fully inert shielding gases such as argon and helium, and generally mixes of these two.

Pure CO₂ and argon and CO₂ mixtures are the most common active gases used for MIG welding gas – MIG gas for MIG welding (MIG welder gas), aside from MIG brazing and MIG welding with aluminum.

As soon as a CO₂ or O₂ component, or both, are introduced to the blend, it then becomes an active shielding gas or welding gas.

This is because the active components of CO₂ and O₂ react with the molten weld pool and droplets moving across the arc, and is hence termed Metal Active Gas (MAG welding).

This is the difference difference between MIG welding and MAG welding.

Argon, CO₂, helium and oxygen are the four most common MIG welding gas – MIG gas types, for shielding, each with its own advantages and disadvantages.

Aluminium

For welding a non-ferrous metals, like aluminum, magnesium or titanium, 100% argon is the way to go.

The most reactive gas for MIG welding gas – MIG gas for MIG welding is CO₂ – carbon dioxide. CO₂ can be used alone, as MIG welding gas, without a mixture of argon or as a CO₂ – Argon mix, except for with aluminium and brazing.

Argon is the most frequently used inert gas for MIG welding with aluminum and MIG brazing.

The relative affordability of CO₂ welding gas, compared to other types of MIG welding gas (MIG welder gas), makes it a popular choice when cost control is important.

Argon is the most frequently used inert welding gas for MIG welding with aluminum and MIG brazing.

The relative affordability of CO₂ welding gas, compared to other MIG welding gas – MIG gas for MIG welding (MIG welder gas), makes it a popular welding gas choice when cost control is important.

Stainless Steel

Oxygen is used in small ratios, as a reactive welding gas, to improve the weld pool and penetration on carbon steel and MIG welding stainless steel.

A helium – argon – CO₂ MIG gas mix is generally used when MIG welding stainless steel.

This tri-mix, with helium, offers higher quality welds and minimizes corrosion that can occur with CO₂ mixes.

Helium is used with non-ferrous metals and MIG welding stainless steel.

Helium is good with thicker materials when mixed with Argon from 25% to 75% ratios.

Stainshield 2.5 MIG welding gas mix used for MIG welding stainless steel is an Argon – CO₂ gas blend.

General purpose welding gas mixture, good wetting action, smooth weld surface.

Argon is generally the preferred welding gas for aluminium welding, whether it’s TIG welding gas (TIG gas) or MIG welding gas (MIG welder gas).

Use a pure argon shield when welding aluminium base metals 15mm thick or less.

When welding thicker metals, a helium mix can useful to increase the penetration.

Our range of MIG welding gas – MIG gas for MIG welding (MIG welder gas) and MIG welding gas mixtures can help optimise your welding jobs.

Get your MIG welding gas – MIG gas and TIG welding gas (TIG gas) with free delivery.

We are MIG gas suppliers near you with Argoshield 5 & Argoshield 16 MIG welding gas – MIG gas mix that are shielding gases with Argon – Oxygen – CO₂ MIG welding gas – MIG gas used for MIG welding is used for carbon & low alloy steels.

Argoshield 25 welding gas is a Argon – CO₂ MIG welding gas – MIG gas used for MIG welding is used for carbon and low alloy steels with an optimum thickness of 10mm+.

Make us your MIG gas suppliers with free welding gas delivery and great MIG welding gas prices.

MIG Welding Gas Overview

Basic Process When Using MIG Welding Gas – MIG Gas:

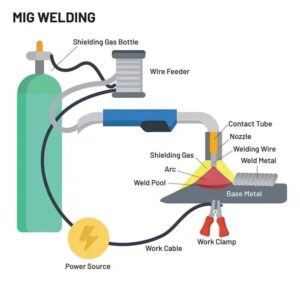

MIG welding uses an electrical arc between a wire electrode and the workpiece, melting the metal and fusing the pieces together.

MIG Welding Gas (MIG Welder Gas) – Shielding Gas:

The MIG welding gas – MIG gas for MIG welding (MIG welder gas) or shielding gas (usually argon or an argon welding gas mixture) shields the weld area from atmospheric contamination, preventing oxidation and ensuring a clean, strong weld.

Consumable Wire Electrode:

The consumable wire electrode is continuously fed into the weld pool area, serving as both the filler metal and the electrical conductor.

Semi-Automatic and Automatic:

While the wire feed is automatic, the welding operator controls the movement of the welding gun and the welding settings/parameters.

Versatility:

MIG welding can be utilised on a wide range of metals and metal thicknesses, making it suitable for various applications.

Fast and Efficient:

MIG welding is fast and efficient, making it a productive welding process.

MIG Welding Gas – MIG Gas Produces Clean Welds with Minimal Spatter:

The shielding gas (MIG welding gas – MIG gas) aids in producing clean, high-quality welds with minimal spatter.

Easy to Learn:

MIG welding is often considered one of the easiest welding processes to learn. This makes it a good choice for beginners.

Proper Settings/Parameters:

Ensure the proper settings/parameters including the correct voltage, wire feed speed, and flow rate of the shielding gas – MIG welding gas for the exact materials and thickness being worked on.

Preparation:

Thoroughly clean and prepare the workpiece by removing any rust, scale, or contaminants that could adversely affect the weld quality.

Consistent Torch Angle and Speed:

Maintaining a consistent torch angle and movement speed is crucial for a uniform weld bead.

Safety:

Always wear appropriate PPE, including a welding helmet, gloves, safety shoes and protective clothing.

TIG Welding Gas – TIG Gas

Argon is the primary gas used for TIG welding gas.

As TIG gas, argon is a colorless, odorless, and inert gas.

It is the standard shielding gas used for most TIG welding applications, as it protects the weld pool and the tungsten electrode from atmospheric contamination.

For other metals or applications, mixtures of TIG gas including helium or hydrogen can be used.

TIG Welding Aluminium

When TIG welding, an arc is formed between the non-consumable tungsten electrode and the metal.

TIG welding gas (TIG gas) – TIG gas flows through the torch, shielding the electrode and molten weld pool.

Filler wire is added separately to the weld pool, if used.

Argon is generally the preferred TIG gas for TIG welding aluminum​, whether it’s TIG welding gas (TIG gas) or MIG welding gas.

Use a pure argon shield TIG gas when TIG welding aluminium base metals 15mm thick or less.

When welding thicker metals, a helium welding gas mix can useful to increase the penetration.

MIG Gas – MIG Welding Gas (MIG Welder Gas) – Shielding Gas for MIG Suppliers

We are MIG welding gas – MIG gas for MIG welding (MIG welder gas) suppliers with an wide range of shielding gas are especially designed for MIG welding and TIG welding of a broad range of alloys including mild, carbon & low alloy steels, aluminium and stainless steel including

• Argoshield 5 MIG Welding Shielding Gas – MIG gas for MIG welding carbon steel sheet and light plate up to about 8mm
• Argoshield 16 MIG Welding Shielding Gas – MIG gas for MIG welding steel used in general fabrication of carbon steel typically in the 4-12mm range
• Argoshield 25 MIG Welding Shielding Gas – MIG gas for MIG welding steel as used in general fabrication of carbon steel typically in the 10mm+ range
• Stainshield 2.5 MIG Welding Shielding Gas – MIG gas for MIG welding stainless steel

What is MIG Welding? What Does MIG Welding Mean?

What is MIG welding? MIG welding gas – MIG gas?

Gas metal arc welding (GMAW) refers in part to metal inert gas (MIG) welding, which is a welding process in which an electric arc forms between a consumable MIG electrode wire and the metal being welded, with a MIG welder.

The electric arc heats the metal, creating a weld pool that causes them to melt and bond.

MIG welding gas – MIG gas for MIG welding gas mix is for a MIG welder.

A MIG welder uses an arc welding process that joins metals by melting them with heat, using MIG welding gas used as shielding gas for MIG welding.

How MIG Welding Works with MIG Welding Gas – MIG Gas:

MIG Arc Formation:

A wire electrode, continuously fed from the MIG welding machine, creates an electric arc when it contacts the workpiece.

Melting and Joining:

The heat from the arc melts the base metals and the wire electrode, causing them to fuse together upon cooling.

MIG Welding Gas (MIG Welder Gas) –  Shielding Gas (MIG welding gas – MIG gas):

The MIG welding gas – MIG gas for MIG welding (MIG welder gas) or shielding gas (MIG welding gas – MIG gas), typically argon or other Argon MIG welding gas mixtures, is dispersed through the welding torch to protect the weld area from atmospheric contamination.

Semi-Automatic Operation:

The wire feeding is automatic, whilst the welding operator controls the torch movement, positioning and the welding parameters/settings.

Other Considerations:

MIG Gas – MIG Welding Gas (MIG Welder Gas) – Shielding Gas:

The choice of MIG welding gas – MIG gas for MIG welding (MIG welder gas) – shielding gas depends on the material being welded and the desired weld characteristics.

There are a numbers of argon MIG welding gas mixes, as well as pure argon welding gas, to choose from.

These are identified by colour of argon cylinder.and argon welding gas mixture colour codes.

Your welding gas supplier can make recommendations for the optimal selection.

You will also need to decide on MIG welding gas (MIG welder gas) – shielding gas bottle size based on anticipated workload.

MIG Welder Equipment Settings/Setup:

Proper settings and setup of the MIG welding machine, including feed speed of the wire, welding voltage, and shielding gas – MIG gas flow rate, are crucial for successful welds.

Follow the instructions for the initial setup and then fine tune with experience.

Following Welding Safety Guidelines:

As with any welding process, welding safety precautions, including proper personal protective equipment (PPE) and adequate ventilation, are required.

Advantages of MIG Welding:

Ease of Use:

MIG welding is known for its fast learning curve, making it a good starting point for welding beginners.

MIG Welding is Versatile

MIG can be used to weld a wide range of metals, including steel, aluminum, and stainless steel, and can be applied to various thicknesses of material.

MIG has High Productivity:

The continuous wire feed of a MIG welder allows for faster welding speeds compared to some other welding types.

Cleanliness – Less Spatter with MIG welding gas – MIG gas:

MIG welding with MIG welding gas – MIG gas generally produces less spatter than some other welding processes, making post-weld cleanup easier and faster.

Favourable Economics:

MIG welding machines can be relatively affordable, particularly for entry-level models, making it economically accessible for small businesses and hobbyists.

MIG Gas: What Gas for MIG Welding? MIG Welding Gas (MIG Welder Gas) – Shielding Gas for MIG Welding

What Gas for MIG Welding?

Argon welding gas is typically the preferred MIG welding gas – MIG gas for MIG welding (MIG welder gas) for MIG welding with aluminum, with either TIG welding or MIG welding.

Use a pure argon shield welding gas – MIG gas when welding a thin aluminium work surface under 15mm.

When welding thicker aluminium, a helium welding gas mix can provide increased penetration.

The shielding gas – MIG gas used for MIG welding gas (MIG welder gas) is a MIG welding gas mix of inert gases.

Argon is the MIG welding gas – MIG gas (MIG welder gas) or shielding gas used for MIG welding with aluminum and MIG brazing.

Argon MIG welding gas – MIG gas replaces the Air (Oxygen) from around the weld pool.

A MIG welding gas mix of active gases is used for MIG welding include CO₂ and a MIG welding gas – MIG gas mix of Argon and CO₂ gas for MIG welding steel.

These active MIG welding gases are typically used for MIG welding most steel but not for MIG welding with aluminum.

An Argon-Co2 MIG welding gas mix slightly improves electrical conductivity for increases penetration and allows the weld pool to flatten and flow, so the weld is not appear too tall.

Our MIG welding gas – MIG gas for MIG welding (MIG welder gas) – shielding gas for MIG welding gas include the Argoshield and Stainshield range, which are MIG welding gas mix formulated by application.

TIG Gas – TIG Welding Gas

When TIG welding, an arc is formed between the non-consumable tungsten electrode and the metal.

TIG welding gas (TIG gas) – TIG gas flows through the torch, shielding the electrode and molten weld pool.

Filler wire is added separately to the weld pool, if used.

TIG welding gas – TIG gas are inert gases used as shielding gases in the TIG welding process.

TIG welding gas – TIG gas is typically a mixture of argon with helium, hydrogen and/or nitrogen added for better welding speeds and process stability.

You get improved weld quality and less rework time.

Active gases are not used for TIG welding as it causes potential problems with hole blows and excessive burning of the tungsten electrode.

HF Unit for TIG Welding

An HF unit for TIG welding is the typical way of starting the TIG welding arc.

It uses HF (High Frequency), which consists of a high voltage spark lasting a few microseconds at several thousand volts.

TIG Welding – GTAW TIG Welding – TIG Welding Gas

GTAW is Gas tungsten arc welding which is also known as TIG welding – tungsten inert gas welding.

GTAW TIG welding is arc welding that employs a non-consumable tungsten electrode to produce the arc weld.

GTAW TIG welding gas – TIG gas is also used with gas tungsten arc welding (GTAW), using a tungsten electrode and argon shielding gas.

Argon shielding gas protects and cools the weld puddle and tungsten from nitrogen absorption and oxidation during GTAW TIG welding.

GTAW TIG welding uses a non-consumable tungsten electrode to deliver the welding arc current.

TIG is an acronym for “Tungsten Inert Gas”.

TIG Welding Aluminum – How to TIG Weld Aluminium

For TIG welding aluminium, here are some helpful tips:

• Wear the proper PPE, including safety glasses, welding helmet, gloves and a welding jacket
• Use the correct TIG welding gas – TIG gas:
  • Use a pure argon shield welding gas when welding aluminium base metals 15mm thick or less
  • When welding thicker metals, a helium TIG welding gas mix can useful to increase the penetration
• Clean off the aluminium oxide layer with a stainless steel wire brush before you begin welding
• AC polarity acts as a cleaning action to help remove the aluminium oxide layer so you can see the molten weld pool
• Turn the balance control down for less EN and more EP to help remove oxide during welding and reduce possible peppering
• The arc becomes more stable at a higher the AC output frequency. 150 to 250 Hz output frequency is good on thin material. For welding thicker materials of 0.375″ (9.4mm) and thicker, use an AC frequency of 80 to 120 Hz.
• The guideline for aluminium GTAW is the use of 1 amp for every 0.001″ (0.25mm) thickness of material. For example, use 100 amps for a thickness of 0.100″ (25mm).
• Control when filler metal (aluminium TIG welding rods) is added to establish the weld puddle and get correct penetration before adding filler metal
• Adding more filler metal (aluminium TIG welding rods) is a common technique used to achieve the stacked-coins appearance with GTAW welded aluminium
• Aluminium conducts heat very well so the heat of the weld puddle can be quickly lost. This requires a lot of heat to establish the weld puddle. Be careful to control the heat to prevent a burn-through or runaway puddle
• Using a shorter arc length helps localise the heat in a tighter area
• Always follow the instructions provided by the welding machine manufacturer

MIG Welding Gas Prices – MIG Gas Bottle Prices – MIG Gas Prices

MIG Gas Bottle Sizes – MIG Gas Cylinder Sizes

Argoshield 5 welding gas & Argoshield 16 MIG welding gas (MIG welder gas) – MIG gas bottle sizes include the G2 MIG gas bottle sizes.

Stainshield 2.5 welding gas is an Argon – CO₂ MIG welding gas (MIG welder gas) mix is used for shielding gas for MIG welding stainless steel.

Stainshield 2.5 MIG gas bottle sizes include the G2 MIG gas cylinder sizes.

Argoshield 5 MIG Welding Gas Mix used for MIG Welding Steel

Argoshield 25 MIG Welding Gas Mix used for MIG Welding Steel

• Always observe gas safety guidelines
• Use of safe work practices are recommended to avoid inhalation.
• Do not drag, drop, slide or roll cylinders.
• The uncontrolled release of a gas under pressure may cause physical harm.
• Use a suitable hand truck for cylinder movement.

Conditions for Safe Storage of Argoshield^® MIG Welding Gas Bottles

Do not store a MIG welding gas – MIG gas for MIG welding (MIG welder gas) bottle near incompatible materials.

Welding gas bottle (welding gas cylinder) should be stored below 45°C in a secure area, upright and restrained to prevent cylinders from falling.

MIG welding gas – MIG gas for MIG welding (MIG welder gas) should also be stored in a dry, well ventilated area constructed of non-combustible material with firm level floor (preferably concrete), away from areas of heavy traffic and emergency exits.

Incompatible materials

Moist carbon dioxide is corrosive, hence acid resistant materials are required (e.g. stainless steel).

Certain properties of some plastics and rubbers may be affected by carbon dioxide (i.e. embrittlement, leaching of plasticisers, etc).

Hazardous by-products may be produced when this MIG welding gas – MIG gas for MIG welding (MIG welder gas)/gas mixture is used in welding, cutting and associated processes.

Please see Argoshield 5, 16 & 25 MIG Welding Gas Mix Safety Data Sheets for full safety details
