Welding Gas Bottle Sizes​ – Gas Bottle Sizes Australia​ – Gas Cylinder Sizes​

Standard industrial and high-pressure gas cylinder sizes:

• 5L: A small high-pressure cylinder, for when size and portability are critical
• 10L (C size): A typical size for smaller industrial or confined space applications
• 20L (E size): A mid-sized gas cylinder suitable for various applications
• 40L (E size): A higher capacity version of the E size gas cylinder
• 50L (F size): A larger industrial gas cylinder for higher volume use
• 80-120L (G size): The largest typical size for high volume industrial use

Welding gas bottle sizes by gas include:

• • Acetylene bottle sizes​

  • Argon gas bottle sizes (argon bottle sizes)

  • CO₂ bottle sizes​ (CO₂ cylinder sizes​)

  • Helium tank sizes​ (helium cylinder sizes)

  • Nitrogen bottle sizes​

  • Oxygen bottle sizes​ – oxygen tank sizes

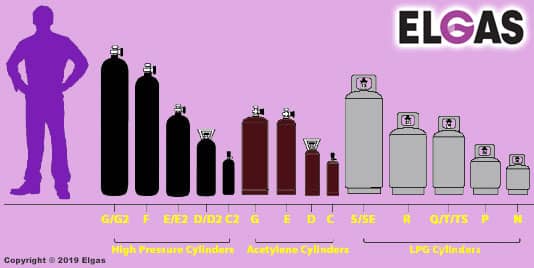

The following chart includes G size, E size, D size and VT size compressed welding gas bottle sizes for Australia – volume and gas bottle dimensions.

Our compressed gas cylinder sizes letter codes are the same as BOC gas bottle sizes codes (BOC gas cylinder sizes codes).

Acetylene gas cylinder sizes (oxy acetylene bottle sizes), cylinder capacity & gas bottle dimensions (welding gas bottle sizes) are included with the compressed gas cylinder sizes.

Acetylene gas cylinder sizes (oxy acetylene bottle sizes) include E and G acetylene gas bottle sizes.

Gas Bottle Types

Gas bottles come in different types:

• Type of Gas: Gas bottles for LPG or compressed gases
• Fabrication Materials or Sizes: Materials include steel, aluminium and composites.

Type of gas can affect construction because some gases are stored at higher pressures and therefore required stronger gas bottles.

LPG gas bottles are made with any of the materials.

High pressure compressed gases tend to be made with steel.

Sizes are identified by either the weight of the contents (e.g. 8.5kg or 45kg), in the case of LPG, or by letter codes (e.g. D, E, G) in the case of compressed gas cylinders.

The letter codes are indicative of size and volume.

Oxy Acetylene Bottles – Oxy Acetylene Bottle Sizes Australia – Oxy Acetylene Cylinder Sizes

Acetylene gas bottle sizes Australia (oxy acetylene cylinder sizes) include E and G acetylene cylinder sizes.

Oxygen tank sizes (oxygen bottle sizes) include E2 and G2 welding gas bottle sizes.

Oxygen Bottle Sizes – Oxygen Cylinder Sizes – Oxygen Tank Sizes – Oxygen Bottle Dimensions

Oxygen bottle sizes include E2 size oxygen cylinder and G2 size oxygen cylinder (oxygen tank sizes).

E2 oxygen bottle dimensions: 780mm height and 204mm diameter

G2 oxygen bottle dimensions: 1460mm height and 230mm diameter

Acetylene Bottle Sizes – Acetylene Cylinder Sizes – Acetylene Tank Sizes Chart

Acetylene bottle sizes (acetylene cylinder sizes) include E and G acetylene bottle sizes and G & E acetylene cylinder dimensions (acetylene tank dimensions), as shown in this acetylene bottle sizes chart:

Argon Gas Bottle Sizes (Argon Bottle Sizes) – Argon Cylinder Dimensions – Argon Cylinder Capacity

Argon gas bottle sizes (argon bottle sizes) include G2 size argon bottle​, E2 size argon bottle​ & D size argon bottle​.

A D size argon bottle (argon gas bottle)​ contains 2.0 m³ (2,000 Litres).

D size argon bottle (argon gas bottle)​ dimensions are 750mm high x 170mm diameter, and the cylinders weight is 20Kg.

An E2 size argon bottle​ (argon gas bottle) contains 4.1 m³ (4,100 Litres).

E size argon bottle​ dimensions are 1460mm high x 230mm diameter, and the cylinders weight is 24.5Kg.

A G2 size argon bottle​ (argon gas bottle) capacity contains 10.2 m³ (10,200 Litres).

G size argon bottle​ (argon gas bottle) dimensions are 780mm high x 204mm diameter, and the cylinders weight is 54Kg.

D size argon bottle (argon gas bottle)​ capacity is 2.0 m³, E size argon bottle​ capacity is 4.1 m³, and G2 size argon bottle​ capacity is 10.2 m³.

Argon Gas Bottle Sizes (Argon Bottle Sizes) – Argon Cylinder Dimensions – Argon Cylinder Capacity Chart

Nitrogen Bottle Sizes (Nitrogen Gas Bottle Sizes) – Nitrogen Cylinder Sizes (Nitrogen Gas Cylinder Sizes)

Nitrogen bottle (nitrogen gas bottle) are supplied in two nitrogen bottle sizes to meet your needs.

Nitrogen bottle sizes (nitrogen gas bottle sizes) include G2 size nitrogen bottle and E2 size nitrogen bottle (nitrogen gas cylinder sizes).

Nitrogen is inert to virtually all substances at ambient temperatures and conditions.

Nitrogen bottle sizes include nitrogen gas bottle sizes, nitrogen cylinder dimensions, and nitrogen bottle capacity.

Nitrogen Bottle Sizes Chart – Nitrogen Cylinder Sizes Chart

Welding Gas Bottle Sizes – Welding Tank Sizes – Welding Cylinder Sizes

Welding gas bottle sizes range from small and portable, favoured by plumbers and other tradespeople, to larger welding cylinder sizes (welding tank sizes) for stationary applications, located somewhere like a maintenance shop or a manufacturing facility.

Welding Gas Bottle Sizes Chart

Compressed Gas Bottle Sizes​ – Compressed Gas Cylinder Sizes: Compressed Gas Cylinder Dimensions​ – Compressed Gas Cylinder Capacity

Compressed gas bottle sizes, compressed gas cylinder dimensions and compressed gas cylinder capacity vary by gas cylinder types.

Different gas types come in different compressed gas bottle sizes, compressed gas bottle dimensions and cylinder capacity.

They can vary even if the compressed gas cylinder sizes share the same dimensions and diameter.

Always check the compressed gas bottle sizes, gas bottle dimensions and cylinder capacity for each gas cylinder type (e.g. oxy acetylene gas bottle sizes).

Helium Tank Sizes – Helium Cylinder Sizes

D2 helium tank sizes (helium cylinder sizes) fill approximately 140 28cm helium balloons.

E2 and G2 helium tank sizes (helium cylinder sizes) fill 300 and 750 refill helium balloons, respectively.

Helium tank sizes for helium tank hire are shown in the chart below, including for G2, E2 and D2 helium tank sizes and helium tank dimensions:

Welding Gas Bottle Sizes – Welding Gas Cylinder Sizes – Welding Gas Tank Sizes – Welding Gas Bottle Dimensions Chart

The following is a welding gas cylinder sizes, welding bottle sizes (welding gas tank sizes) and welding gas bottle dimensions chart is for common compressed gas cylinder sizes Australia (welding gas bottle-cylinder sizes). For example…

E Size Gas Cylinder Dimensions – E Size Gas Bottle Dimensions

E size gas cylinder dimensions (E size gas bottle dimensions) are 210mm diameter and 770mm height, with a 22kg tare weight.

E size gas cylinder dimensions may vary, based on different manufacturers.

G size gas cylinder dimensions are 310mm diameter and 795mm height. G size gas cylinder tare weight is 55kg.

Welding Gas Bottle Sizes Chart – Welding Gas Bottle Sizes Australia​

Industrial & Hospitality G, E, D, & VT Compressed Gas Bottle Sizes, Cylinder Capacity & Gas Bottle Dimensions

Compressed gas bottle sizes “G” has a tare weight of 55kg and is the largest compressed gas cylinder size, whilst a D2 tank size (gas cylinder sizes) is the smallest compressed gas cylinder size.

Acetylene welding gas bottle sizes include E and G size gas bottles.

E welding gas bottle sizes (welding gas cylinder sizes) is very popular for shielding gases and acetylene but argon welding gas bottle sizes include G2, E2 & D gas bottle sizes in Australia.

For reference, our compressed gas cylinder sizes letter codes are the same as BOC gas bottle sizes codes (BOC gas cylinder sizes codes).

Nitrogen bottle sizes come in G2 and E2 nitrogen cylinder sizes, cylinder capacity & gas bottle dimensions.

Helium comes in G2, E2 and D2 helium tank sizes, helium tank capacity, and helium tank dimensions.

CO2 gas bottle sizes (CO2 bottle sizes) for carbonation and industrial use include VT & F beverage and welding gas bottle sizes – welding bottle sizes, gas cylinder sizes, cylinder capacity & gas bottle dimensions.

Argon gas bottle sizes (argon bottle sizes) “D” gas bottle dimensions – cylinder capacity: 1700 Litres (1.7 Cubic Metres)

Acetylene bottle sizes (oxy acetylene bottle sizes) include E and G acetylene gas cylinder sizes.

Oxygen tank available in E2 and G2 oxygen bottle sizes (oxygen cylinder sizes), oxygen tank sizes, oxygen tank capacity & oxygen tank dimensions.

Water Capacity of Gas Cylinder Sizes

The water capacity of gas bottle sizes is a figure that is mostly irrelevant for consumers.

Engineers use it.

As it suggests, the water capacity of gas cylinder sizes is the cylinder capacity of the LPG gas cylinder sizes as if they were filled with water.

You can see the “W.C.” stamped into the neck ring in the image above.

Water Capacity of Gas Cylinder Chart

The following chart shows the water capacity of gas cylinder in common sizes:

However, the specific gravity of propane is different and gas cylinders are also designed with expansion space, for the gas.

This makes the water cylinder capacity completely different from the propane fill cylinder capacity of the same LPG gas cylinder size.

Industrial Gas Cylinder Manufacturers

There are many industrial gas cylinder manufacturers around the world.

In Australia, we have Manchester Tank & Equipment for LPG and refrigerant cylinders.
